No image for Android Mediatek RAW Image

[sridher]

I manage to save RAW Image from mediatek chipset based Android mobile.

i am sure that it is Bayer encoded raw image(10bit 0bit skip with size 1584 by 1188). but i am unable to open it in XnView (It is showing 512x512 image with strange lines) but i am unable to open it

My Filename was given as **Capture23213008ISO2400__1584x1188_10_0.raw**

to save from mediatek chipset based android mobile

1. from MTK engineering mode goto camera settings and select mode to RAW (among the - raw, processed raw, jpeg only)
2. select size to captured
3. Take a snapshot
4. RAW file(**Capture23213008ISO2400__1584x1188_10_0.raw**) saved along with jpeg on the DCIM\CameraEM folder

[xnview]

could you send me the file?

[sridher]

Hi,

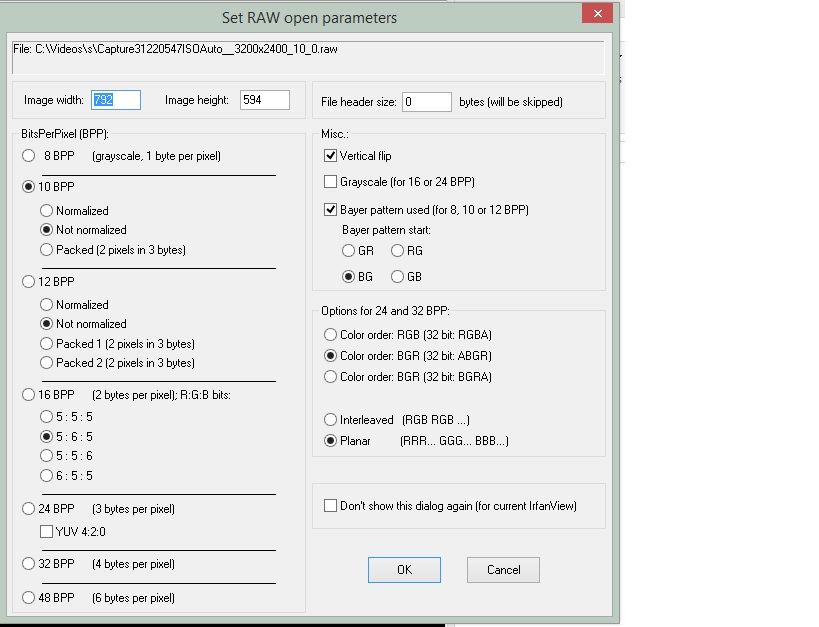

I am linking the RAW file and settings used to view on irfran view (change width n height to 3200x2400)

https://dl.dropboxusercontent.com/u/366 ... 0_10_0.raw

[xnview]

ok, currently 10bits are not supported for RAW import

[danistuta]

Hi, I tried to open your file .raw with these Infraview settings, but I obtain strange colors. See this image: https://dl.dropboxusercontent.com/u/485 ... 0_10_0.jpg)

Is there a way to have normal image colors, just like your .jpeg?
Thank you.
