Grid: Settings and Display

Post by Peter2 » Wed Feb 17, 2016 2:45 pm

Command "View -> Show Grid"

Just to be sure: The settings for the "Grid" are

a) in Pixel
b) valid for the displayed size of the image
c) so independent from the size (width and height) of the image
d) there a zoomed-in image displays more grid line than a zoomed-out image

Right?

Peter
XnView 2.49.2 German, Win 10

cday
XnThusiast
Posts: 2484
Joined: Sun Apr 29, 2012 9:45 am
Location: Cheltenham, U.K.

Re: Grid: Settings and Display

Post by cday » Wed Feb 17, 2016 5:46 pm

Peter2 wrote:Command "View -> Show Grid"

Just to be sure: The settings for the "Grid" are

a) in Pixel
b) valid for the displayed size of the image
c) so independent from the size (width and height) of the image
d) there a zoomed-in image displays more grid line than a zoomed-out image

Right?

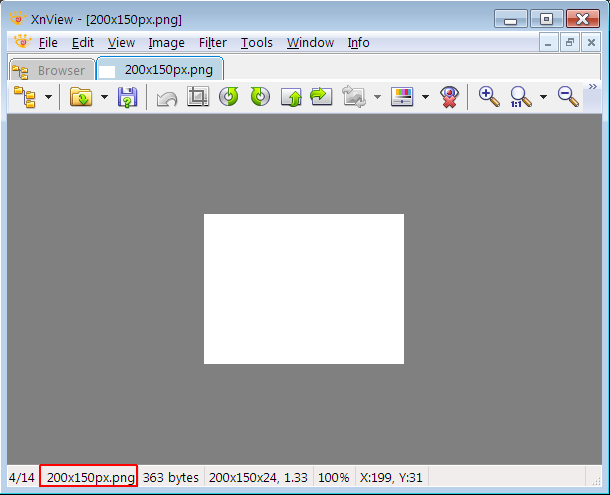

The following is a 200x150px image opened in XnView Classic -- Click to see the full image:

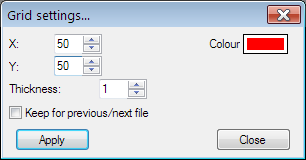

The following grid settings are selected:

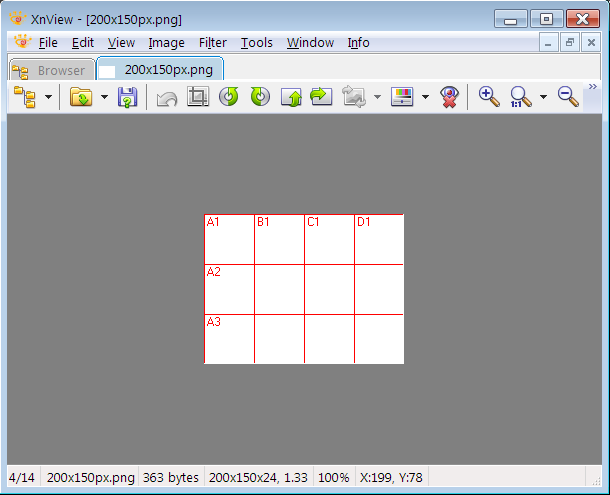

With display scaling 1:1 on the toolbar this is the resulting image -- Click to see the full image:

So the grid dimensions are in pixels, and relate to the displayed pixel size of the image on screen...

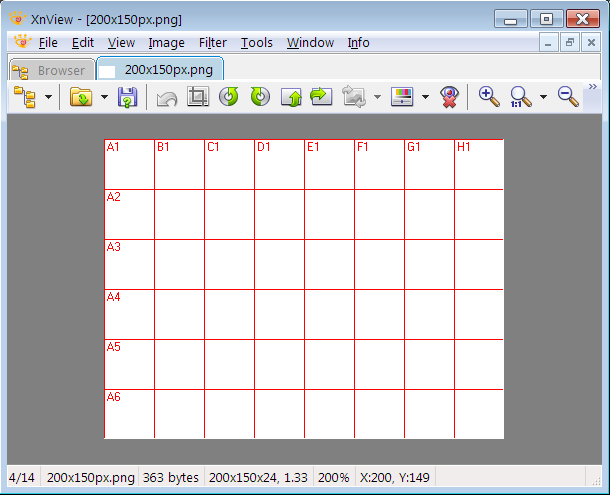

With display scaling 2:1 [ '+' clicked twice on the toolbar, default zoom setting] this is the image displayed on the screen -- Click to see the full image:

So more grid lines are displayed when zoomed in, and the grid remains relative to the displayed image pixel dimensions on the screen...

So 'yes' to all your questions?

User avatar
Peter2
XnThusiast
Posts: 1194
Joined: Thu Nov 24, 2005 3:07 pm
Location: CH

Re: Grid: Settings and Display

Post by Peter2 » Wed Feb 17, 2016 6:15 pm

cday wrote:So 'yes' to all your questions?
No, only to the last (and only one).
Everything correct: Yes 8)

Thanks for the detailed demonstration and the confirmation.

Peter
XnView 2.49.2 German, Win 10
