1.4.0b1 - batch convert - 'Canvas resize' background color and alpha

[user0]

XnView: MP 1.4.0b1 64bits
OS: Windows 64bit (22H2), display resolution 3840x2160, win scaling 150%

Batch convert

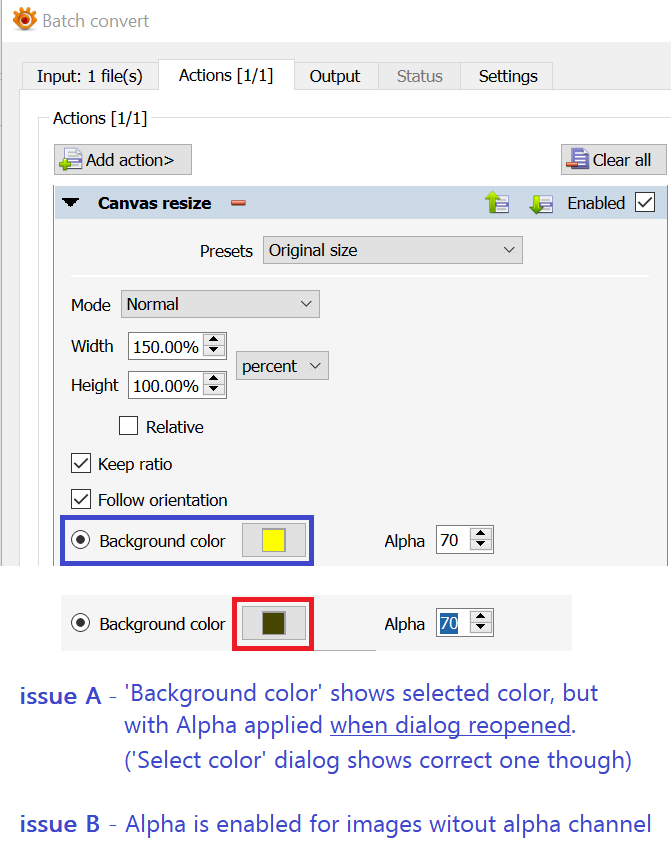

issue A
'Background color' shows selected color, but with Alpha applied (and on black background*) when dialog reopened.
It should show just selected color.
* it is even not a background color from Batch convert settings tab

issue B
Alpha control do nothing to the images without alpha channel

Suggestion
there are few options:
1. disable control for images without alpha channel
2. add checkbox that will enable/disable alpha control, means add/remove alpha channel*
3. keep it always enabled:
-- if value =255 (opacity =1oo%) - DO not add alpha channel to image
-- if value <255 (opacity <1oo%) - ADD alpha channel to background*
* then it will depends on output format's ability to keep alpha channel

as for me, option 2 is the clearest one, 3 is unintuitive

[xnview]

issue A

Right

issue B
Alpha control do nothing to the images without alpha channel

Suggestion
there are few options:
1. disable control for images without alpha channel
2. add checkbox that will enable/disable alpha control, means add/remove alpha channel*
3. keep it always enabled:
-- if value =255 (opacity =1oo%) - DO not add alpha channel to image
-- if value <255 (opacity <1oo%) - ADD alpha channel to background*
* then it will depends on output format's ability to keep alpha channel

I can't disable alpha channel because we don't know if there is 32bits in the file list...

[user0]

I can't disable alpha channel because we don't know if there is 32bits in the file list...

correct, I forgot that we have multiple files in batch )
'Canvas resize' sould not add/delete Alpha channel, only apply some Alpha value to extended canvas space if image already has Alpha

However there is still some 'issue' I would like to address.

Current behaviour, if Alpha channel exists:

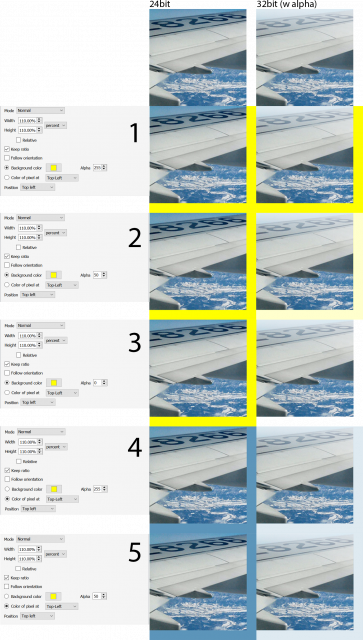

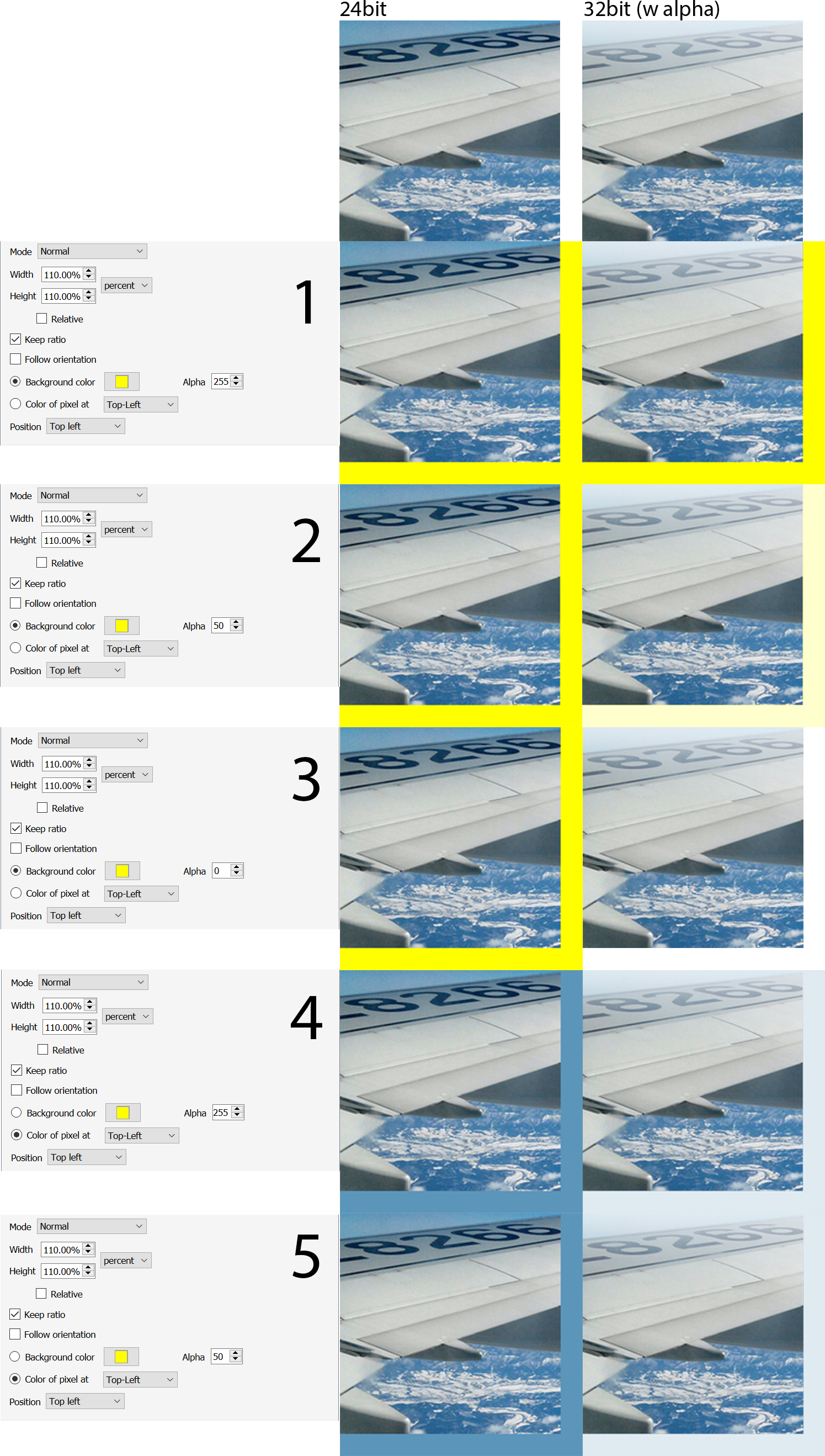

• 'Background color' + 'Alpha' – works as expected (pic 1-3)

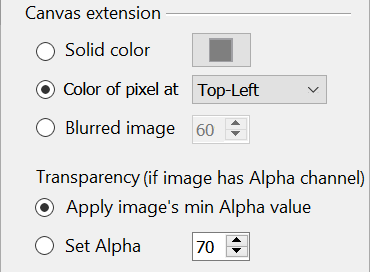

• 'Color of pixel at.'. – does not work as expected
  it applies image's min Alpha value to extended canvas space and there is no way to change it (pic 4, 5)

How to bring more clarity?

• let 'Alpha' control affect 'Color of pixel at..' as well as 'Background color'
  however some functionality will be lost (ability to apply image's min Alpha value), so maybe..

• add some selector
  not sure about wording though as all I come up with looks too clunky




[xnview]

issue A
'Background color' shows selected color, but with Alpha applied (and on black background*) when dialog reopened.
It should show just selected color.
* it is even not a background color from Batch convert settings tab

See issue for current status and some details.

I can't disable alpha channel because we don't know if there is 32bits in the file list...

correct, I forgot that we have multiple files in batch )
'Canvas resize' sould not add/delete Alpha channel, only apply some Alpha value to extended canvas space if image already has Alpha

However there is still some 'issue' I would like to address.

Current behaviour, if Alpha channel exists:

• 'Background color' + 'Alpha' – works as expected (pic 1-3)

• 'Color of pixel at.'. – does not work as expected
  it applies image's min Alpha value to extended canvas space and there is no way to change it (pic 4, 5)

No, it takes color with alpha from selected pixel

[xnview]

This problem is supposed to be fixed in XnView MP 1.4.3. Please check and confirm the bug fix here.

[user0]

fixed in 1.4.3 (by not memorizing Alpha value)

[xnview]

fixed in 1.4.3 (by not memorizing Alpha value)

Thanks to your detailed description I can reproduce the problem.

[xnview]

This problem is supposed to be fixed in XnView MP 1.4.4. Please check and confirm the bug fix here.

[user0]

fixed in 1.4.4
