"This picture will beconverted to RGB with 8 bit per compone

Post by Peter2 »

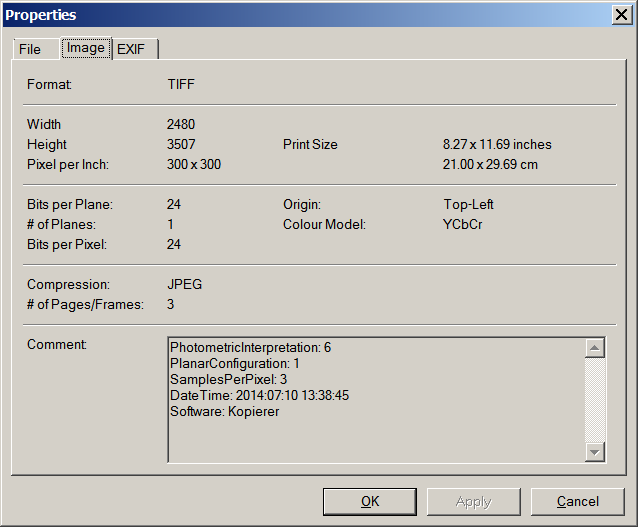

I have a multipage TIFF with these properties.

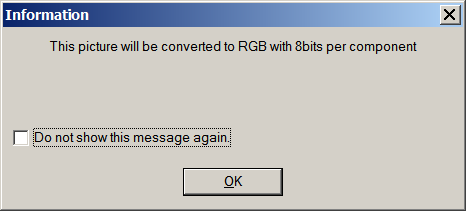

Opening the file displays this:
Why?

Peter
XnViewMP <Current version> German, XnConvert <Current version>, Win 10
Top
User avatar
XnTriq
Moderator & Librarian
Posts: 6516
Joined: Sun Sep 25, 2005 3:00 am
Location: Ref Desk

Re: "This picture will beconverted to RGB with 8 bit per com

Post by XnTriq »

Hi Peter (-:

The color space of your TIFF file is YCbCr. XnView has to convert the image to RGB in order to display it.
[url=http://www.remotesensing.org/libtiff/support.html]TIFF 6.0 Specification Coverage[/url] » Class Y for YCbCr images wrote:SamplesPerPixel = 3
BitsPerSample = <8,8,8>
PlanarConfiguration = 1, 2
Compression = 1 (none), 5 (LZW), 7 (JPEG)
PhotometricInterpretation = 6 (YCbCr)
YCbCrCoefficients, YCbCrSubsampling, YCbCrPositioning
Top
User avatar
Peter2
XnThusiast
Posts: 1366
Joined: Thu Nov 24, 2005 3:07 pm
Location: CH

Re: "This picture will beconverted to RGB with 8 bit per com

Post by Peter2 »

OK, thanks XnTriq

Peter
XnViewMP <Current version> German, XnConvert <Current version>, Win 10
